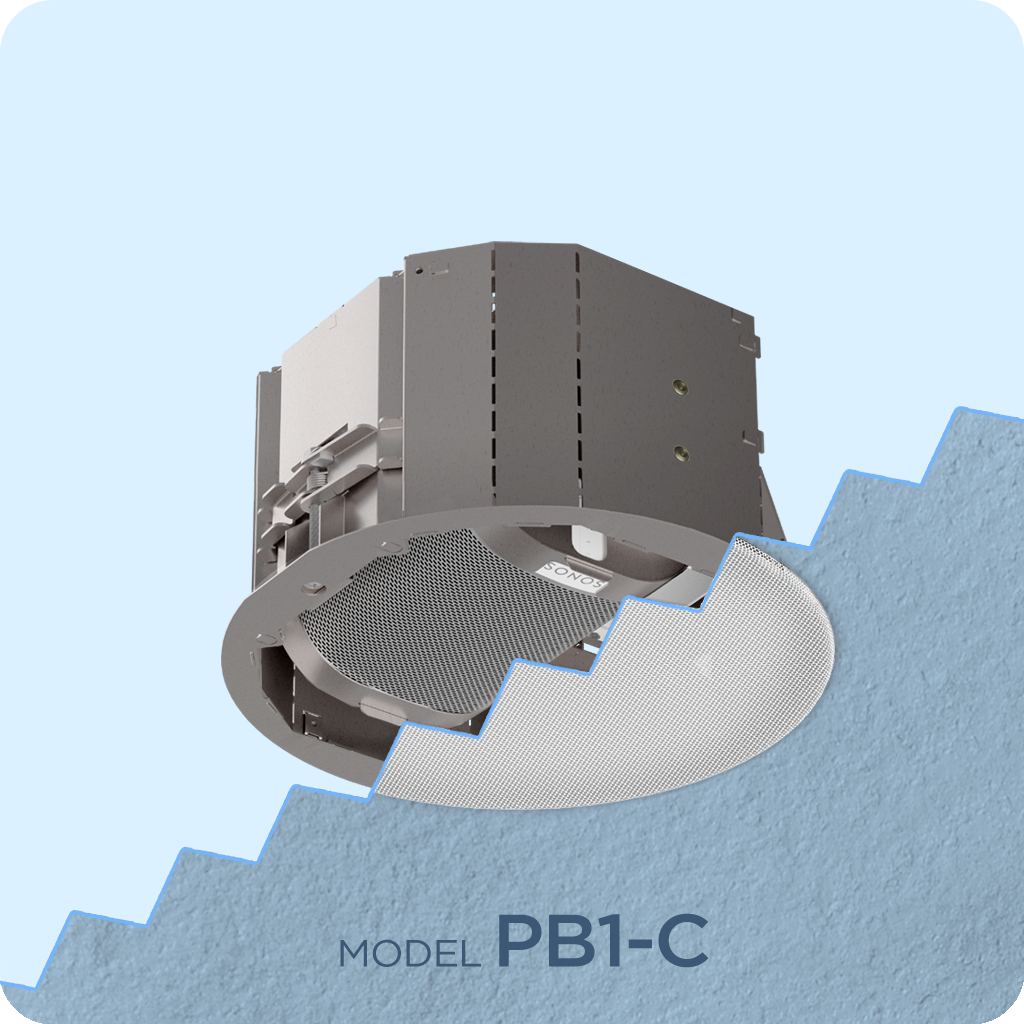

Thenos PlayBox In-Ceiling Mount for Sonos

Model: PB1-C

Our In-Ceiling, Recessed-Mount Sonos Solution was invented by Audio/Video Installers to transform your Sonos speakers from tabletop to a professional in-ceiling setup. The PlayBox is tuned to not inhibit sound quality, interfere with wireless signals, nor reduce mic sensitivity (for voice-controlled speakers).

Designed for an Architectural-vibe, the PlayBox Ceiling Model eliminates any visible cords or cables, for a clutter-free setup. Preferred by homeowners, businesses, architects, and designers, the PB1-C prevents unwanted tampering or damage, common with countertop speakers, while still delivering amazing sound quality from above.

Engineered for Demanding Environments, and built to last, the PlayBox by Thenos is manufactured using rugged metal materials, making it ideal for a multitude of applications within any home or business habitat.

Features

• Engineered for Sonos One, One SL & Play:1™
• Approved for both residential and commercial*

• Heavy-duty, all-metal design (beware of plastic imitators)

• Accommodates ceiling thickness(es) from .25" to 1.95"

• Code-compliant integrated power supply (ETL & UL Listed)

• Flexible Install: Use Romex™, Metallic Flex (MC), or EMT Conduit
• Neodymium magnets securely grip speaker grill

• Inlet for optional hardline ethernet connection (CAT5/6)
• U.S. Made †

Specifications

Weight:
6.50 lbs (the PlayBox without Sonos speaker)
8.5 lbs (packaged/ship weight)

Product Dimensions:
    >Unit Only
Height: 7.0”
Diameter: 10.75”
    >Round Cover Grill ⚫
Diameter: 11.0”
    >Square Cover Grill ■
Height: 11.25”
Width: 11.25”

Ceiling-Hole Size (cut by installer):
Diameter: 9.875”

Required In-Ceiling Clearance:
Vertical ↨ Space: 8.0” (min.)  |  9-10" (recommended)
Horizontal ↔ Space: 13.0" x 13.0"

What's Included

1. PlayBox Ceiling Unit
2. Metallic Junction Box
3. Speaker Bracket Assembly**
4. Mirco-Mesh, Zero Edge Speaker Grill (Round or Square)

5. Non-metallic (Romex™) Cable Clamp
6. Flex/MC Cable Clamp
7. Recessed Electrical Outlet (15a, 125v)
8. Screw/Hardware Kit
9. 12” Safety Cable
10. Ceiling-Cut Template
11. Install Guide

General

Model Numbers:
PB1-C-RG-W (Round-grill in White)
PB1-C-RG-B (Round-grill in Black)
PB1-C-SG-W (Square-grill in White)
PB1-C-SG-B (Square-grill in Black)

Documents:
PDF Product/Spec Sheet  |  Ceiling-Cut Template  |  Install Guide

Disclaimers & Safety

Certifications (Power Supply):
ETL/Intertek Listing: 3163781
UL Listed/Standard: Yes  |  UL File#: E2969
UNSPSC: 39121206

Note: This product requires electrical knowledge and/or experience to install. If you do not possess the skills or experience required for a high-voltage project, consult an electrician or professional installer. Observe all federal, state, and local laws/codes when installing the product.

*Approved for installation within North America or equivalent standards, installation outside of North America is "at the risk" of the purchaser. **Sonos speaker not included. †Select versions may contain some foreign parts.
